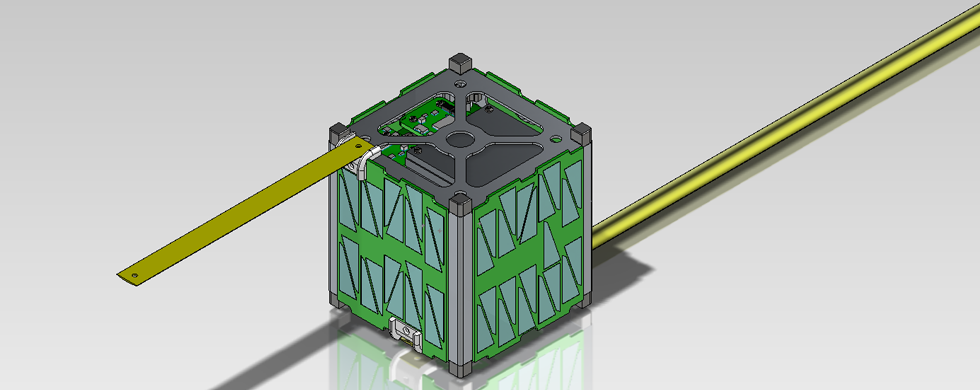

• TechEdSat is a NASA Ames Research Center 1U CubeSat built by San Jose State University Students in partnership with ÅAC Microtec.
> <
  • 1
  • Hardware
  • Specifications
  • Additional
  • Stensat Radio Beacon
  • 4x nanoRTU (ÅAC Microtec)
  • Main Power Distribution Board (ÅAC Microtec)
  • RTU Lite (ÅAC Microtec)
  • 2 meter band Monopole Antenna
  • 70cm band Monopole Antenna
  • 1600 MHz Patch Antenna
  • Pumpkin, Inc. 1U Skeletonized CubeSat Structure
  • Canon BP-930 Lithium-ion battery
  • Dimensions: 113.5 mm x 100 mm x 100 mm
  • Mass: 1.19 kg
  • Power Consumption (Safe Mode): 0.35 W
  • Power Consumption (Safe Mode, Stensat Transmitting): 3.4W
  • Power Consumption (Nominal Mode): 3.965W
  • Power Consumption (Q1000 Transmitting): 27.125W
  • Power Consumption (Q9602 Transmitting): 10.49W
  • Power Consumption (Nominal Mode, Stensat Transmitting): 7.015W
  • Solar Array (Average): 1.8W
  • Operator - San Jose State University / JAXA / ÅAC Microtec / NASA
  • Bus - 1U CubeSat
  • Mission - Technology Demonstration
  • Launch - 20 July 2012
  • Carrier - H-IIB /J-SSOD Deployer on ISS
  • Site - Tanegashima
  • Mass - 1.19 kilograms
  • Regime - Low Earth

TechEdSat

  • Print

TechEdSat is a NASA Ames Research Center 1U CubeSat built by San Jose State University Students in partnership with ÅAC Microtec. It's mission is to evaluate Space Plug-and-play Avionics (SPA) designed in Sweden by ÅAC Microtec, and to perform a communications experiment utilizing the Iridium and Orbcomm satellite phone network. [1] TechEdSat will be launched to the International Space Station aboard HTV-3 on 20 July 2012. From there, it will be deployed into Low Earth Orbit using the JAXA J-SSOD deployer, from the JEM.
